3.4.5.9. Spectral distance

_images/spectral_distance_tab.png

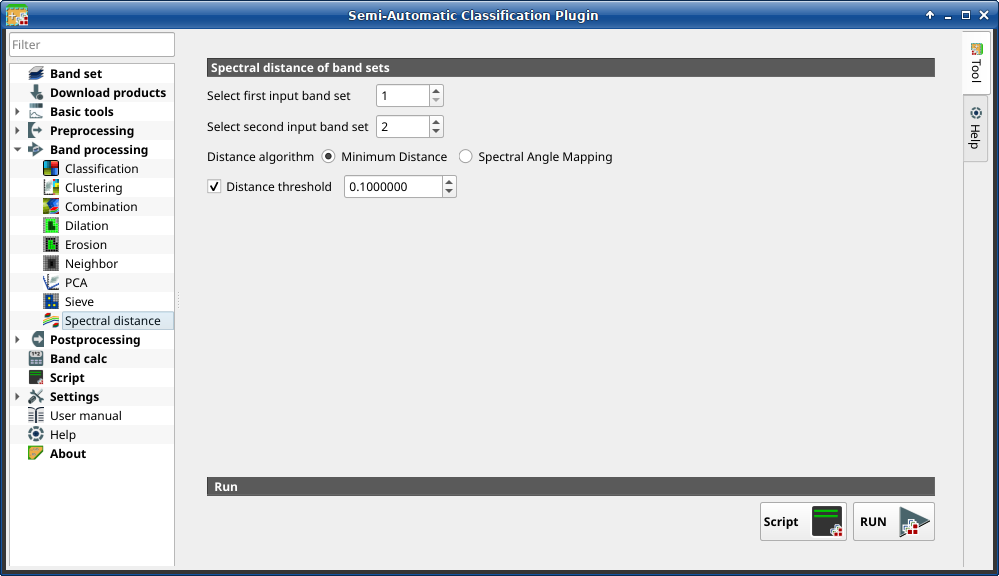

Spectral distance

This tab allows for calculating the spectral distance between every corresponding pixel of two band sets. The output is a raster containing the spectral distance of each pixel. Optionally, a threshold can be defined for creating a binary raster (0-1) of values below and above the threshold.

This tool supports virtual raster output; if the output file name ends with .vrt then the output is created as virtual raster composed of as many .tif files as the number of CPU threads defined in System; for large rasters this can speed up the process.

Tip

Information about APIs of this tool in Remotior Sensus at this link .

3.4.5.9.1. Spectral distance of band sets

Tool symbol and name

Description

Select first input band set input_number

select the first input Band set

Select second input band set input_number

select the second input Band set

Distance algorithm

radiobutton Minimum Distance

radiobutton Spectral Angle Mapping

select Minimum Distance or Spectral Angle Mapping for spectral distance calculation

checkbox Distance threshold input_number

if checked, a binary raster of values below and above the threshold is created

3.4.5.9.2. Run

Tool symbol and name

Description

Script script_tool

add this function to the Script

RUN run

run this function
